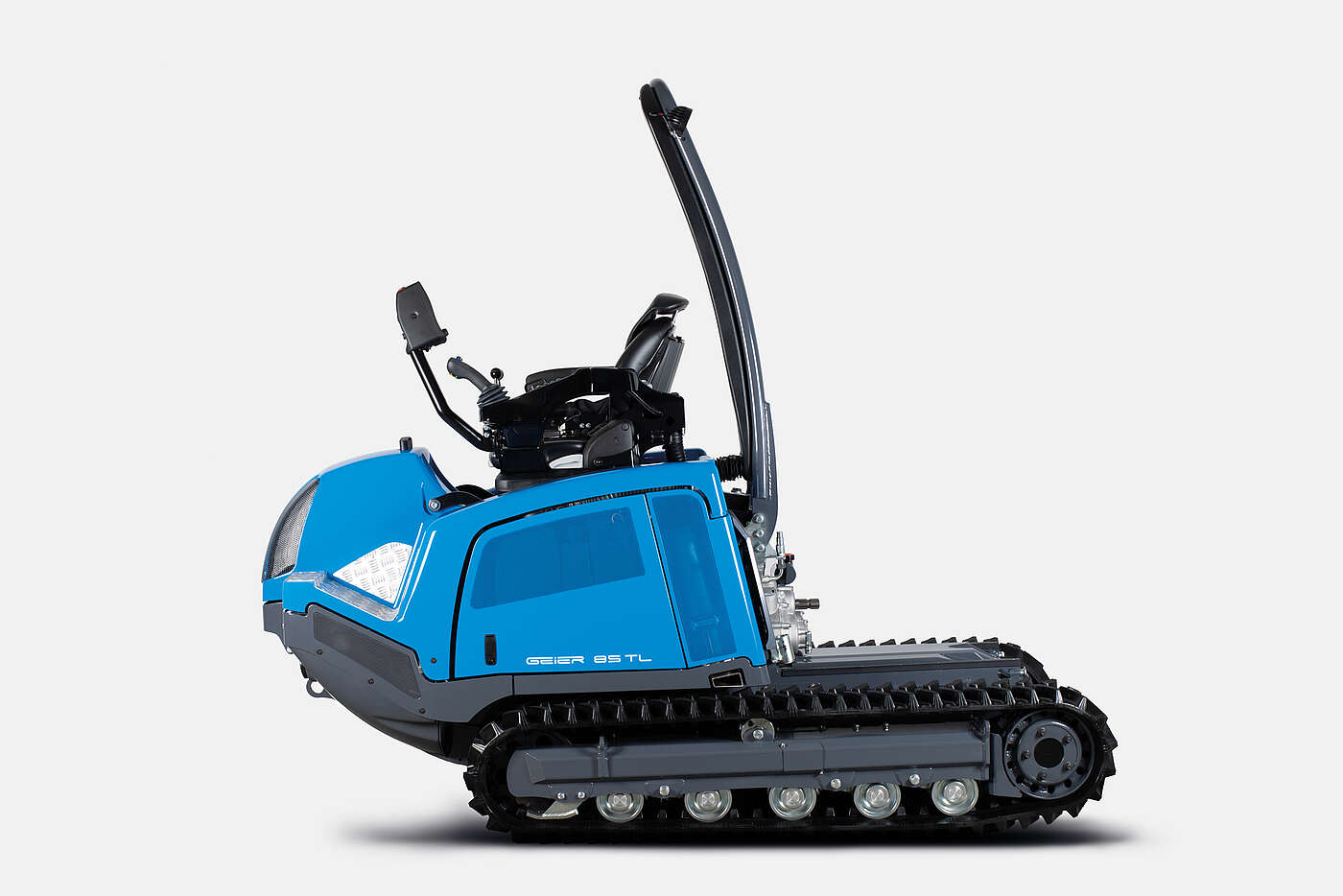

GEIER 85TL
GEIER 85TLY
GEIER Forest

GEIER 85TL


1100

mm, width

960

mm, width above the trucks

87

HP, engine power

GEIER 85TLY


1100

mm, width

960

mm, width above the trucks

87

HP, engine power

GEIER Forest


1100

mm, width

960

mm, width above the trucks

87

HP, engine power

Series 85

85TL

85TL
Diesel engine
Manufacturer Yanmar
Engine displacement 3319
Cylinder 4
Power KW (PS) 53,7 / 73
Torque (Nm) 296
Rpm 2500
Cooling Water
Tank capacity (l) 32
Battery (V/Ah) 55
Alternator (A) 12V/55

Driving quality
Power unit stepless
Speed, forward/backward (km/h) 0-10
Turning radius 0
Chassis spring-loaded
Spring-loaded rollers / side 5
Cruise control yes

Hydraulic system
Service pump (l/min) 38
Working pressure (bar) 180
Control, electro proportional yes
Control valves DW 3
Control valves for external power units 1
Flow rate control valve (l/min) 0-25
Powershift PTO (rpm) 540/750

85TLY

85TLY
Diesel engine
Manufacturer Yanmar
Engine displacement 3319
Cylinder 4
Power KW (PS) 53,7 / 73
Torque (Nm) 296
Rpm 2500
Cooling Water
Tank capacity (l) 32
Battery (V/Ah) 55
Alternator (A) 12V/55

Driving quality
Power unit stepless
Speed, forward/backward (km/h) 0-10
Turning radius 0
Chassis spring-loaded
Spring-loaded rollers / side 5
Cruise control yes

Hydraulic system
Service pump (l/min) 38
Working pressure (bar) 180
Control, electro proportional yes
Control valves DW 3
Control valves for external power units 1
Flow rate control valve (l/min) 0-25
Powershift PTO rpm 540/750

Winch
Winch pulling force (kg) 1000
Max. wire rope length (mt) 200
Rope diameter 8
Breaking load (kg) 7000
Tension control over the whole rope length yes

85 Forest

85 Forest
Diesel engine
Manufacturer Yanmar
Engine displacement 3319
Cylinder 4
Power KW (PS) 53,7 / 73
Torque (Nm) 296
Rpm 2500
Cooling Water
Tank capacity (l) 32
Battery (V/Ah) 55
Alternator (A) 12V/55

Driving quality
Power unit stepless
Speed, forward/backward (km/h) 0-10
Turning radius 0
Chassis spring-loaded
Spring-loaded rollers / side 6
Cruise control yes

Hydraulic system
Service pump (l/min) 38
Working pressure (bar) 180
Control, electro proportional yes
Control valves DW 3
Control valves for external power units 1
Flow rate control valve (l/min) 0-25
Powershift PTO (rpm) 540/750

Winch
Winch pulling force (kg) 1000
Max. wire rope length (mt) 200
Rope diameter 8
Breaking load (kg) 7000
Tension control over the whole rope length yes

85TL

85TL
Dimension mm
A Width 1100
B Width above rubber tracks 960
C Chain width 250
K Chain length 1935
L Length 2570
H Height 2230
Empty weight (kg) 1510

85TLY

85TLY
Dimension mm
A Width 1100
B Width above rubber tracks 960
C Chain width 250
K Chain length 1935
L Length 2570
H Height 2230
Empty weight (kg) 1720

85 Forest

85 Forest
Dimension mm
A Width 1100
B Width above rubber tracks 960
C Chain width 250
K Chain length 1935
L Length 2570
H Height 2350
Empty weight (kg) 1780

Suspended Undercarriage

The distinctive features of Geier Tracked Vehicles include the Suspended Undercarriage as well as the drive gears with double impeller. Our chassis gives the driver not only the optimum comfort but also the optimal traction. Uneven surfaces conquered with vigour and precision, safety guaranteed in the limit. The specially developed drive gears prevent that the track comes off and promise an accurate track guide. The low design and the ideal weight distribution enable the overcoming of slopes up to over 60%.


Further information

Mechanical PTO

In addition to the particular Suspended Undercarriage, our PTO drive also convinces with its unique practicability and the constant power transmission on accessories. The accessories can be quickly installed directly on the Tracked Vehicle, without great effort. The PTO's mechanical direct drive over the engine achieves an optimal efficiency and avoids additional load for the hydraulic oil. That is a standard on all models.


Further information

Swivel Seat, Ergonomics and Control

Permanent innovation means for us to comprehend and foresee the customer demand. The implementation of suitable solutions elects our work. The best example for this is the comfortable Swivel Seat with a reversible driver's platform and practical joystick to operate. It offers good all-round vision, is at 360° manoeuvrable and can always be put in the right direction so that you have a clear view in every situation and your work by the short hairs.


Further information

Hydraulic Connections

Well thought out Hydraulic Connections ensure smooth motion sequences. Modern implements with numerous hydraulic functions like the Vine Trimmer can be simply and conveniently controlled. Three double-acting connections for the hydraulic cylinder and a double-acting connection for the hydraulic motor (up to 25 l) are provided, by default. The superior flow regulator makes the additional adjustment of the oil quantity possible. The hydraulic cylinders can just be moved by one finger proportional slowly to quick.


Further information

Cruise Control

The Cruise Control keeps the chosen speed constant. The advantages are evident: works like the output of pesticides can be done precisely without speed deviations. Fuel consumption, noise level and motor speed can be reduced significantly and consequently the driving comfort increases too. Simply type your desired speed and let's get started!


Further information

Winch

With the Geier Winch, you can do every job up to 75% on steep terrain, perfectly safe and convenient. The Winch, equipped with modern control technology installed at the front of the vehicle, effectuates the perfect synchronous match of the traction with the chain drive. Simple, automatic und with low-maintenance: There are no operator errors, and the premature rope failure is avoided. The nappy system with spool winder guarantees the optimal winding of the Winch (210 m). Combinable with the Geier Rail System.


Further information

Cabin

Adjusted, elegant and spacious. The specially designed Cabin offers the perfect protection against cold, heat and pesticides. A comfortable workplace as well in summer as in winter, with excellent all-round-sight and ventilation system that filters pollutants from the supply air and precise regulates the room temperature.

Go to Cabin

Winch

With the Geier Winch, you can do every job up to 75% on steep terrain, perfectly safe and convenient. The Winch, equipped with modern control technology installed at the front of the vehicle, effectuates the perfect synchronous match of the traction with the chain drive.

Go to Winch

Lift

The Lift of the Geier Tracked Vehicles convinces with technical sophistication. With the Lift, the basic unit can carry both commercial devices of Class 1 and our own developed machine attachments equally easy and comfortable. Thanks to the stand legs on wheels, the adding and removal is instantly done by one person. The manageable operation of the different hydraulic cylinders over the ergonomic joystick underlines the operator convenience.

Go to Lift

Sprayer

Geier Sprayers for orchards and vineyards fit precisely with the Basic Tracked Vehicle and distinguish themselves by a high air performance with low power requirement. The targeted distribution of the air is ensured by the fans with the rectifier and adjustable air baffle plates. The sophisticated design concept guarantees a full emptying in each incline. Tank capacities: 200 l, 250 l, 300 l.

Go to Sprayers

Multifunctional Arm

Its full ability the Multifunctional Arm shows on plantations for straight traction and on terraces. It can fit with a De-Leafer, a Shoot-Binder, Pre-Trimmer as well as with a Vine Trimmer. The central rotating assembly and rotating head on the tool enable weight displacement on steep terrain of ascents and declines and guarantee the highest safety.

Go to Multifunctional Arm

Mulcher

The combination of our Tracked Vehicles with the specially adjusted Mulch Devices such as the Flail Mulcher, Rotary Mulcher and Offset/In-Line Mulcher guarantee rapid, convenient and efficient work. Thereby special attention is given to the thorough cutting guide. For every terrain the optimal device - whether for orchards, vineyards or park maintenance.

Go to Mulcher

Under Vine Mower

Especially indispensable for the vineyard: Our Under Vine Mower with two independent arms and mowing heads in the front area. The electrical circuit, speed regulation and adjustment options with a width from 1,1 m to 2,2 m guarantee a particularly gentle and uncomplicated under vine care also for terraces. The simple coupling and decoupling of the Tracked Vehicle give the highest flexibility.

Go to Under Vine Mower

Transporter

Harvesting becomes a fascinating experience. Our Transport Crates and Grape Buckets with box-shaped support structure ensure at every loading condition the best stability. In doing so, the front loader and forklift play of course also a leading role. That way, various materials and harvest are reliably transported from the field.

Go to Transporter

Harvesting Machine

The Geier Planea Tracked Vehicle belongs to the showpieces of innovative device development. The harvesting-/lifting machine can be used on steep slopes up to 50% and be controlled comfortably in the raised stand. The platform can be adjusted hydraulically in height and propensity. The harvest crates are picked up in the front without any problems, pulled through the raised stand, filled and dropped again with the pallet forks.

Go to Harvesting Machine

Chipper

The Chipper makes the maintenance of vineyards and orchards or the purge of the forest, also on rough terrain a child's play. You directly manoeuvre comfortable and safe from the Tracked Vehicle to your field of work and can immediately begin to chop. Powerful and sustainable in the conversion of "raw materials" for the own heading system.

Go to Chipper

Earth Movement

Geier Tracked Vehicles are unbeatable potent if it is about earthwork and floor work. With loader, plough and auger and terrace cutter, Geier possesses over a number of high-performance, stable modules that can easily be connected with the basic unit and do work with precision and power.

Go to Earth Movement

Rail System

Die ideale Lösung für schlechte Zufahrten, unwegsames und extrem steiles Gelände: Als Ergänzung zur Seilwinde kann das Geier-Schienensystem mit Rollenkörper für die Verankerung des Zugseiles befestigt werden. Zeitaufwändiges An- und Abhängen der Maschine entfällt und fließende Arbeitsgänge beschleunigen den Arbeitsablauf und -leistung.
